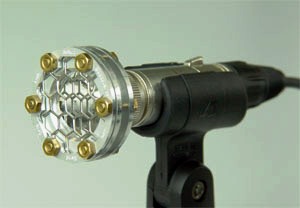

Condenser ultrasound microphone Avisoft-Bioacoustics CM16/CMPA

The condenser microphone Avisoft Bioacoustics CM16/CMPA provides a good compromise between sensitivity and flatness of the frequency response. It consists of an externally polarized metallized film diaphragm and a metal backplate. The capsule is replaceable in order to handle the relatively low durability of the thin diaphragm. This microphone model requires an additional 200V polarization voltage that is supplied by the UltaSoundGate base units.

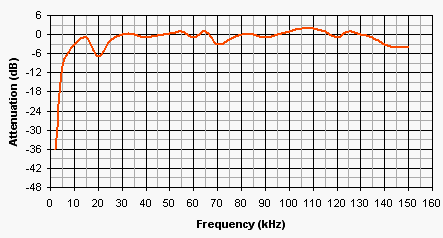

* Frequency range : 10 kHz – 200 kHz
* Approximate input-referred self-noise Level : 18 dB SPL
* Power supply: 48V, 10mA phantom power
* Approximate sensitivity: 50mV/Pa
* Connector: common male XLR-3 socket
* Removeable protection grid
* Dimensions : 36 x 36 x 125 mm
* Weight : 150 g
* Supplied accessories: spare capsule, two 2 m extension cables, high-quality Sennheiser microphone clamp, mini tripod and watertight transport box
